Hi,

I’m having trouble with the Complete Composites feature in FontCreator.

I have already:

  1. Added anchors (top) to my base letters.

  2. Added matching anchors (top) to my diacritics.

However, when I try to generate Latin Extended glyphs, they remain empty and the anchors don’t connect automatically.

  • Do I need a specific naming convention for this to work?

  • Is there a setting/steps I missed in the Glyph Definitions?

Any help would be appreciated. Thanks!

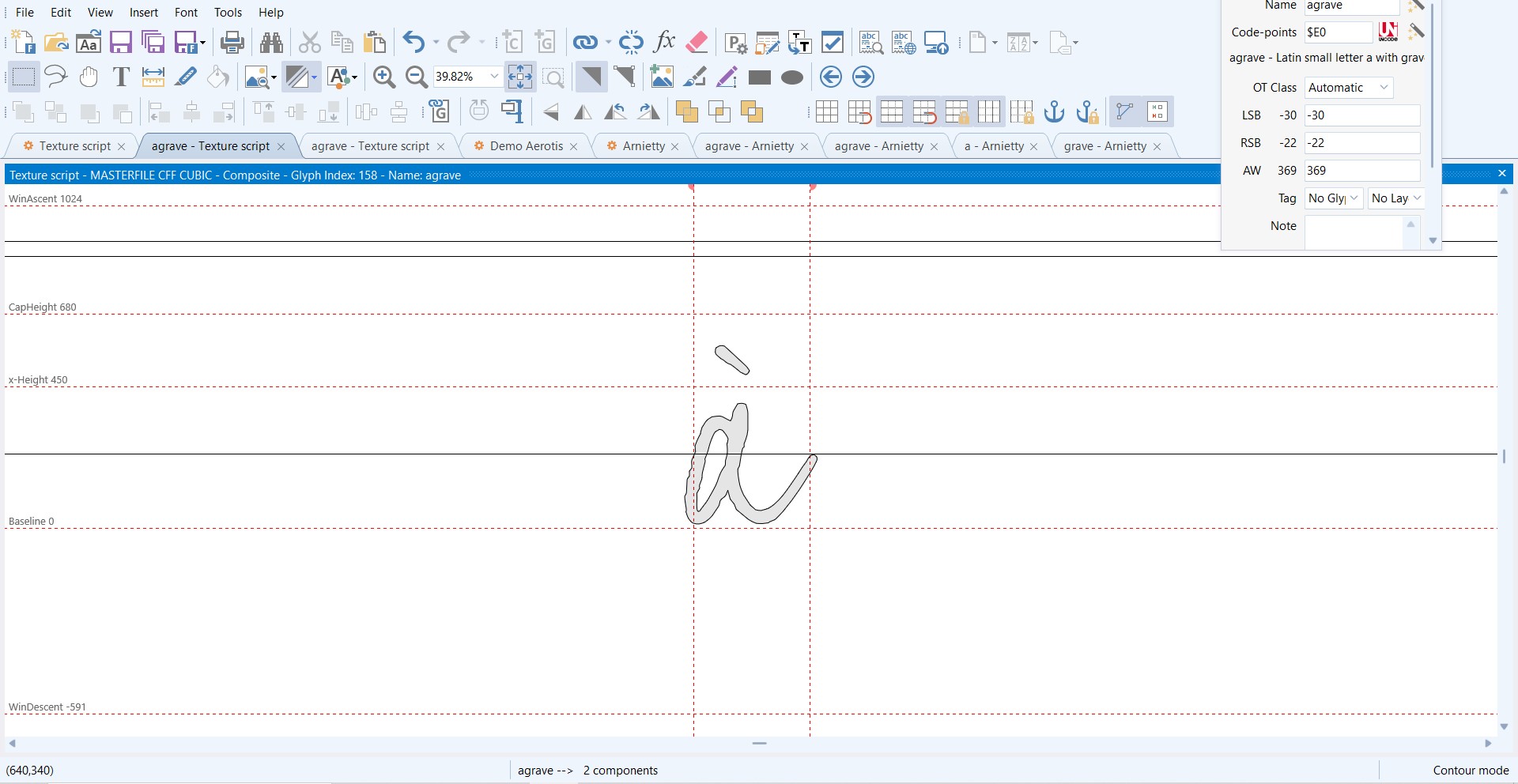

agrave1
agrave11920×992 224 KB

2

“Complete Composites” uses the combining diacritic glyphs (the …comb versions) for most Latin Extended characters. So if you used e.g. grave (U+0060) it won’t match what the generator expects. It expects gravecomb (U+0300). Same for acute/tilde/circumflex, etc.

Also make sure your composite has enabled AutoAttach.

This tutorial explains the expected accents/marks setup:
Latin Diacritical Marks - Accents

Let me know if that helps, and if not, do provide a minimal font project for us to look into.

1 Like
3

Hi Erwin,

Thank you so much for your fast response, I really appreciate that.

I’m glad I already figured it out! Thank you :slight_smile:
